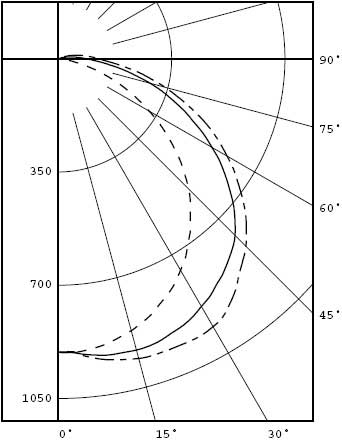

Photometry
| 50MM / 2.00 INCH DIAMETER LAMP SPECS | |||
| Part Number | Description | Multi-Voltage | Downloads |
| WGP511 | 8 Watt - Miniature Bi-Pin - T5 Lamp Length - 12 inches Fixture Length - 14 inches |
120v/60Hz (only available in 120V) |
WGP511.PDF WGP511.IES |
| WGP512 | 14 Watt - Miniature Bi-Pin - T5 Lamp Length - 22 inches Fixture Length - 24.75 inches |
120v/60Hz 240v/50Hz 277v/60Hz |
WGP512.PDF WGP512.IES |
| WGP513 | 21 Watt - Miniature Bi-Pin - T5 Lamp Length - 34 inches Fixture Length - 36.75 inches |
120v/60Hz 240v/50Hz 277v/60Hz |
WGP513.PDF WGP513.IES |
| WGP514 | 28 Watt - Miniature Bi-Pin - T5 Lamp Length - 46 inches Fixture Length - 48.5 inches |
120v/60Hz 240v/50Hz 277v/60Hz |
WGP514.PDF WGP514.IES |
| WGP515 | 35 Watt - Miniature Bi-Pin - T5 Lamp Length - 58 inches Fixture Length - 60.375 inches |
120v/60Hz 240v/50Hz 277v/60Hz |
WGP515.PDF WGP515.IES |
Download free Photometry reader
| 70MM / 2.75 INCH DIAMETER LAMP SPECS | |||
| Part Number | Description | Multi-Voltage | Downloads |
| WGP712 | 17 Watt - Miniature Bi-Pin - T8 Lamp Length - 24 inches Fixture Length - 27.75 inches |
120v/60Hz 240v/50Hz 277v/60Hz |
WGP712.PDF WGP712.IES |
| WGP713 | 25 Watt - Miniature Bi-Pin - T8 Lamp Length - 34 inches Fixture Length - 39.75 inches |
120v/60Hz 240v/50Hz 277v/60Hz |
WGP713.PDF WGP713.IES |
| WGP714 | 32 Watt - Miniature Bi-Pin - T8 Lamp Length - 48 inches Fixture Length - 51.75 inches |
120v/60Hz 240v/50Hz 277v/60Hz |
WGP714.PDF WGP714.IES |
| WGP715 | 40 Watt - Miniature Bi-Pin - T8 Lamp Length - 60 inches Fixture Length - 63.75 inches |
120v/60Hz 240v/50Hz 277v/60Hz |
WGP715.PDF WGP715.IES |
Download free Photometry reader
| 70MM / 2.75 INCH DIAMETER TWO LAMP SERIES SPECS | |||
| Part Number | Description | Multi-Voltage | Downloads |
| WGP722 | 14 Watt - Miniature Bi-Pin - T5 Lamp Length - 22 inches Fixture Length - 27.75 inches |
120v/60Hz 240v/50Hz 277v/60Hz |
WGP722.PDF WGP722.IES |
| WGP723 | 21 Watt - Miniature Bi-Pin - T5 Lamp Length - 34 inches Fixture Length - 39.75 inches |
120v/60Hz 240v/50Hz 277v/60Hz |
WGP723.PDF WGP723.IES |
| WGP724 | 28 Watt - Miniature Bi-Pin - T5 Lamp Length - 46 inches Fixture Length - 51.75 inches |
120v/60Hz 240v/50Hz 277v/60Hz |
WGP724.PDF WGP724.IES |
| WGP725 | 35 Watt - Miniature Bi-Pin - T5 Lamp Length - 58 inches Fixture Length - 63.75 inches |
120v/60Hz 240v/50Hz 277v/60Hz |
WGP725.PDF WGP725.IES |
| 70MM / 2.75 INCH DIAMETER FOUR LAMP SERIES SPECS | |||
| Part Number | Description | Multi-Voltage | Downloads |
| WGP748 | 28 Watt - Miniature Bi-Pin - T5 Lamp Length - 46 inches Fixture Length - 96 inches |
120v/60Hz 240v/50Hz 277v/60Hz |
WGP748.PDF WGP748.IES |
Download free Photometry reader
