WaterGuard Plus Waterproof Fluorescent Lighting Fixtures
— WILL NOT LEAK
Download:
WaterGuard Brochure (.pdf)
WaterGuard Warranty Sheet (.pdf)
Washdown Fixtures - IP67 Rated
Applications include Product Inspection, Food Plants, Supermarket Produce Misting Areas, Amusement Parks, Car Washes, Parking Garages, Retail, Food Processing, Seacoast Areas, Tunnels, Greenhouses, Signage, Water Treatment Plants, Bridges, Shopping Malls, Decorative Lighting and Corrosive Areas. Casing manufactured from XYLEX 8300 HP.
All Waterguard plus washdown waterproof fluorescent industrial lighting fixtures are able to withstand high pressure washdown up to 1200PSI. Replacement parts list available upon request. All products IP67 Rated. Limited One-Year Warranty. Temperature rated from -20°F to 150°F. Visit the WaterGuard MAX page to see the latest in WaterGuard technology.
.jpg)
EncapSulite Waterproof Lighting
WGP50 Single T5 Lamp Series
UL listed 1598. UL-EPH Certified. Standard fixture includes two heavy duty non-metallic fixed mounting brackets, HF Electronic Program Start Universal Ballast 120V to 277V 50/60HZ, Factory pre-wired with 8 foot black cord, High efficiency reflector system to increase foot candles directly under fixture, and a Single 4100 Kelvin T5 safety coated lamp. Other Kelvin temperature lamps available upon request. Optional suspension mounting methods available at additional cost. WaterGuard lighting fixtures should be cleaned with a mild soap and water solution. Do not use industrial cleaners or solvents. Not recommended for permanent immersion.
| 50MM / 2.00 INCH DIAMETER LAMP SPECS | ||||
| Part Number | Description | Multi-Voltage | Downloads | |
| WGP511 | 8 Watt - Miniature Bi-Pin - T5 Lamp Length - 12 inches Fixture Length - 14 inches |
120v 50/60Hz (only available in 120V) |
WGP511.PDF WGP511.IES | |
| WGP512 | 14 Watt - Miniature Bi-Pin - T5 Lamp Length - 22 inches Fixture Length - 24.75 inches |
120-277V 50/60Hz | WGP512.PDF WGP512.IES | |
| WGP513 | 21 Watt - Miniature Bi-Pin - T5 Lamp Length - 34 inches Fixture Length - 36.75 inches |
120-277V 50/60Hz | WGP513.PDF WGP513.IES | |
| WGP514 | 28 Watt - Miniature Bi-Pin - T5 Lamp Length - 46 inches Fixture Length - 48.5 inches |
120-277V 50/60Hz | WGP514.PDF WGP514.IES | |
| WGP515 | 35 Watt - Miniature Bi-Pin - T5 Lamp Length - 58 inches Fixture Length - 60.375 inches |
120-277V 50/60Hz | WGP515.PDF WGP515.IES | |
Download free Photometry reader
WGP70 Single T8 Lamp Series
UL listed 1598. UL-EPH Certified. Standard fixture includes two heavy duty non-metallic fixed mounting brackets, HF Electronic Program Start Universal Ballast 120V to 277V 50/60HZ, Factory pre-wired with 8 foot black cord, High efficiency reflector system to increase foot candles directly under fixture, and a Single 4100 Kelvin T8 safety coated lamp. Other Kelvin temperature lamps available upon request. Optional suspension mounting methods available at additional cost. WaterGuard waterproof fluorescent lighting fixtures should be cleaned with a mild soap and water solution. Do not use industrial cleaners or solvents. Not recommended for permanent immersion. ** FEP coated outer casings available for applications involving harsh environments.
| 70MM / 2.75 INCH DIAMETER LAMP SPECS | ||||
| Part Number | Description | Multi-Voltage | Downloads | |
| WGP712 | 17 Watt - Miniature Bi-Pin - T8 Lamp Length - 24 inches Fixture Length - 27.75 inches |
120-277V 50/60Hz | WGP712.PDF WGP712.IES | |
| WGP713 | 25 Watt - Miniature Bi-Pin - T8 Lamp Length - 34 inches Fixture Length - 39.75 inches |
120-277V 50/60Hz | WGP713.PDF WGP713.IES | |
| WGP714 | 32 Watt - Miniature Bi-Pin - T8 Lamp Length - 48 inches Fixture Length - 51.75 inches |
120-277V 50/60Hz | WGP714.PDF WGP714.IES | |
| WGP715 | 40 Watt - Miniature Bi-Pin - T8 Lamp Length - 60 inches Fixture Length - 63.75 inches |
120-277V 50/60Hz | WGP715.PDF WGP715.IES | |
Download free Photometry reader

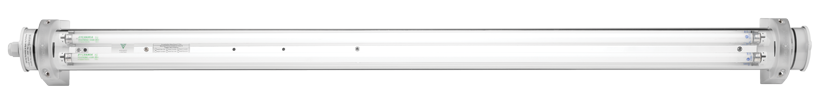

WGP70 Two & Four Lamp T5 Lamp Series
UL listed 1598. UL-EPH Certified. Two Lamp or Four Lamp standard lighting fixture includes two heavy duty non-metallic fixed mounting brackets or three brackets for the four lamp fixture, HF Electronic Program Start Universal Ballast 120V to 277V 50/60HZ, Factory pre-wired with 8 foot black cord, High efficiency reflector system to increase foot candles directly under fixture, and a Single 4100 Kelvin T5 safety coated lamp. Other Kelvin temperature lamps available upon request. Optional suspension mounting methods available at additional cost. WaterGuard waterproof fluorescent industrial lighting fixtures should be cleaned with a mild soap and water solution. Do not use industrial cleaners or solvents. Not recommended for permanent immersion. **FEP coated outer casings available for applications involving harsh environments.
| 70MM / 2.75 INCH DIAMETER TWO LAMP SERIES SPECS | |||
| Part Number | Description | Multi-Voltage | Downloads |
| WGP722 | 14 Watt - Miniature Bi-Pin - T5 Lamp Length - 22 inches Fixture Length - 27.75 inches |
120-277V 50/60Hz | WGP722.PDF WGP722.IES |
| WGP723 | 21 Watt - Miniature Bi-Pin - T5 Lamp Length - 34 inches Fixture Length - 39.75 inches |
120-277V 50/60Hz | WGP723.PDF WGP723.IES |
| WGP724 | 28 Watt - Miniature Bi-Pin - T5 Lamp Length - 46 inches Fixture Length - 51.75 inches |
120-277V 50/60Hz | WGP724.PDF WGP724.IES |
| WGP725 | 35 Watt - Miniature Bi-Pin - T5 Lamp Length - 58 inches Fixture Length - 63.75 inches |
120-277V 50/60Hz | WGP725.PDF WGP725.IES |
| 70MM / 2.75 INCH DIAMETER FOUR LAMP SERIES SPECS | |||
| Part Number | Description | Multi-Voltage | Downloads |
| WGP748 | 28 Watt - Miniature Bi-Pin - T5 Lamp Length - 46 inches Fixture Length - 96 inches |
120-277V 50/60Hz | WGP748.PDF WGP748.IES |
Download free Photometry reader
Mounting Brackets
Each EncapSulite WaterGuard Plus waterproof fluorescent lighting fixture includes two non-metallic mounting brackets.
 |
 |
WGP70 Mounting Bracket |
WGP50 Mounting Bracket |
| Sanitation | |
 |
 |
| ANSI/NSF 2 Fabricated Food Service Equipment 12SS “For Splash Zone Only” |
ANSI/NSF 2 12SS |
