WaterGuard Single T5

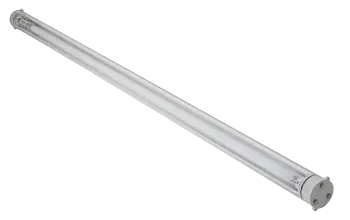

WaterGuard Plus 50 T5 Series

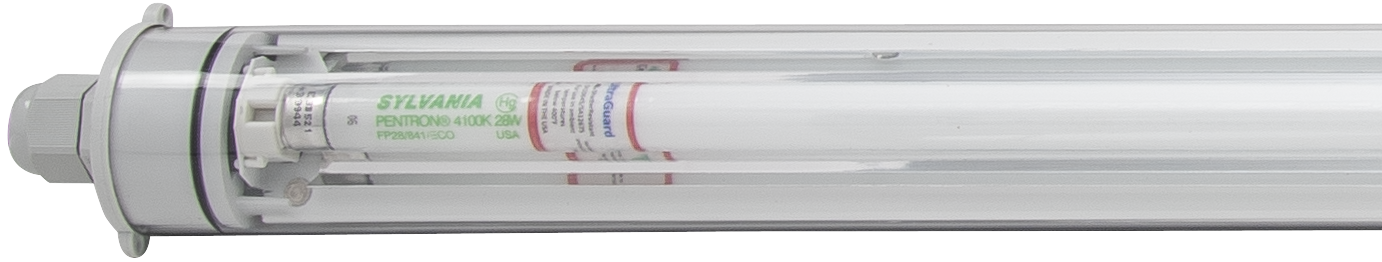

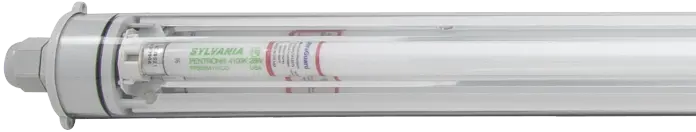

The WaterGuard Single T5 is a single fluorescent fixture ideal for aqeuous environments, including the food industry and other industries. This waterproof fixture is available in five lenghths, from twelve inches to sixty inches, and includes a Teflon® Coated Fluorescent Lamp.

  • Diameter: 2”
  • Lengths: 12”, 24”, 36”, 48”, 60”
  • Single 4100K T5 Teflon® coated fluorescent lamp included
  • Factory pre-wired with 8’ power cord
  • UL 1598 (wet location) listed & UL-EPH NSF Certified for 1200PSI wash down
  • Temperature rated from -20°F to 150°F (-28°C to 66°C)
  • Heavy duty non-metallic mounting brackets included
  • High efficiency reflector system to increase foot candles directly under fixture

EncapSulite’s WaterGuard Single T5 waterproof light fixtures feature two heavy duty non-metallic fixed mounting brackets, electronic program start ballast, universal voltage (120-277 50/60HZ), and a factory pre-wired 8’ power cord and plug.

High efficiency reflector systems increase foot candles directly under fixture, with 4100 Kelvin T5 safety coated lamps included. (Other Kelvin temperature lamps available upon request.) Optional suspension mounting methods available at additional cost. Limited 1-year warranty.

UL 1598 (wet location) listed and UL-EPH certified.

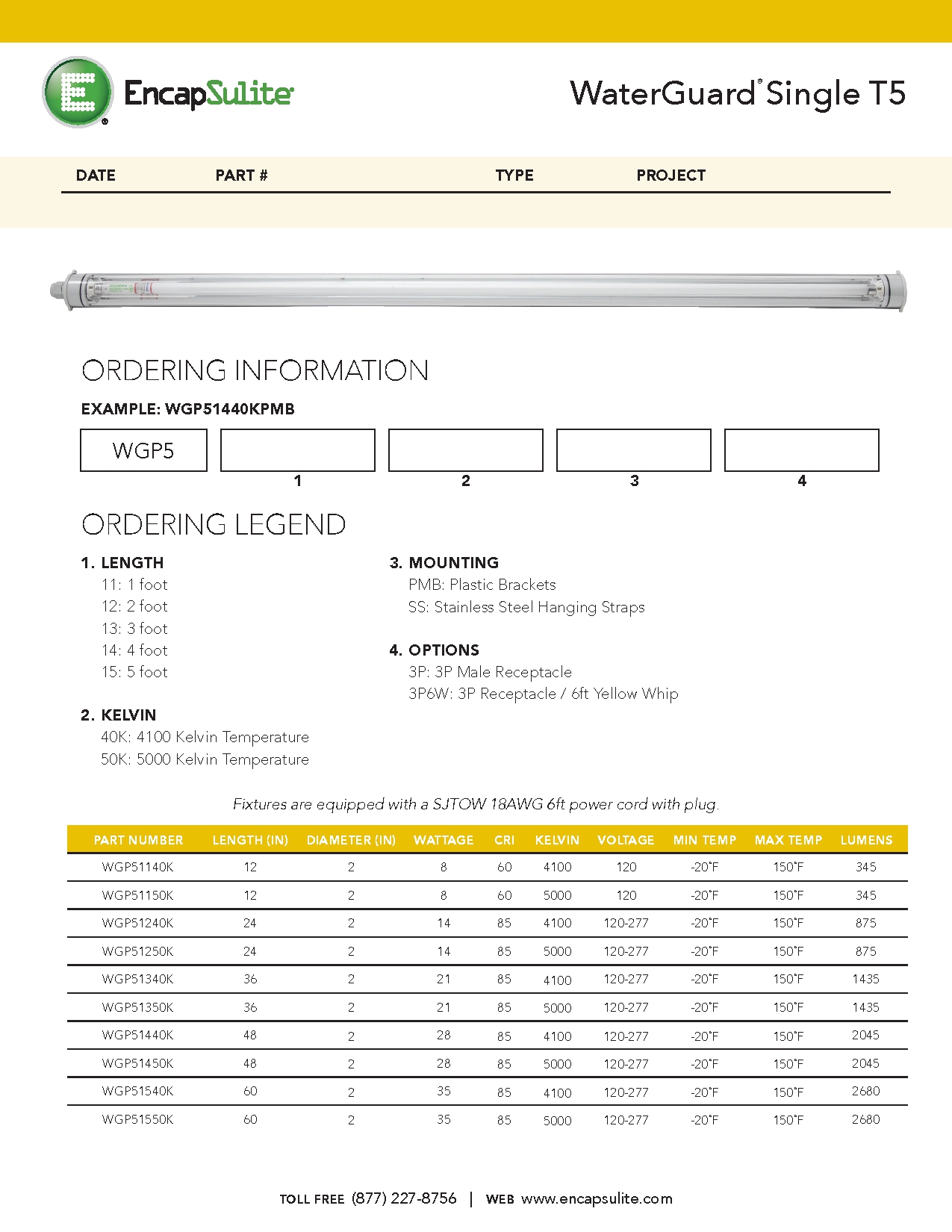

Specification Sheet
